3-Axis / Gantry Portable Milling Machine PMH3
December 10, 20233-Axis Portable Milling Machine PMM3
The PMM3 is a 3-axis portable milling machine designed for accurate and stable on-site machining. Built on the same modular concept as the lightweight models, it features a more rigid solid aluminum frame, making it suitable for applications where higher stability and cutting performance are required.
It is used for surface milling and general field machining in locations where workshop machines cannot be deployed.
Key Features and Benefits
- Rigid modular design
The machine combines a solid aluminum frame with a modular construction. This allows easy transport and fast setup on site, while maintaining the rigidity needed for accurate machining. - Multiple drive options
The PMM3 can be equipped with different spindle drive configurations to match site conditions and application requirements:- Straight pneumatic motor (3 kW): standard option for reliable performance
- Right-angle pneumatic motor (2.5 kW): adjustable orientation for confined or restricted spaces
- Electric motor (1.8 kW, 230 V): for sites where electrical power is preferred, providing consistent and efficient operation
- Flexible clamping solutions
The PMM3 can be mounted directly onto the workpiece using a welded or bolted base. Optional magnetic clamping enables fast setup on ferrous surfaces. - Designed for on-site conditions
Hardened guideways and ball screws ensure smooth and accurate movement, while minimizing wear and maintenance. The construction is intended for reliable operation in demanding field environments. - Adjustable spindle orientation
The spindle can be angled to improve accessibility and machining capability in complex setups or limited-access areas. - User-friendly control system
The machine is operated via a straightforward control unit designed for safe and reliable use in field conditions, including demanding industrial environments.
Applications
- On-site surface milling and repair
- Weld removal and surface preparation
- Machining in confined or hard-to-access locations
- Maintenance work in oil & gas, power generation, shipbuilding, and construction
- Machining of non-ferrous surfaces using vacuum clamping
- General portable milling operations
Technical Data
| Travel | X-travel: 1m / 1.5m/ 2m/ custom Y-travel: 225mm Z-travel: 80mm |
| Feed |
X-axis: pneumatic / electric /manual Y-axis: manual Z-axis: manual |
| Spindle |
Motor options:
Depth measurement system |
| Mounting | Base plate for mounting by bolts or welding |
| Optional; Magnet base / Vacuum clamping |
|
| Machine delivery includes |
Control unit Transport box Set of hand tools for operating the machine CE certification and manual |
| Weights | Operational weight: 170 kg |
| Transport weight: 250 kg |

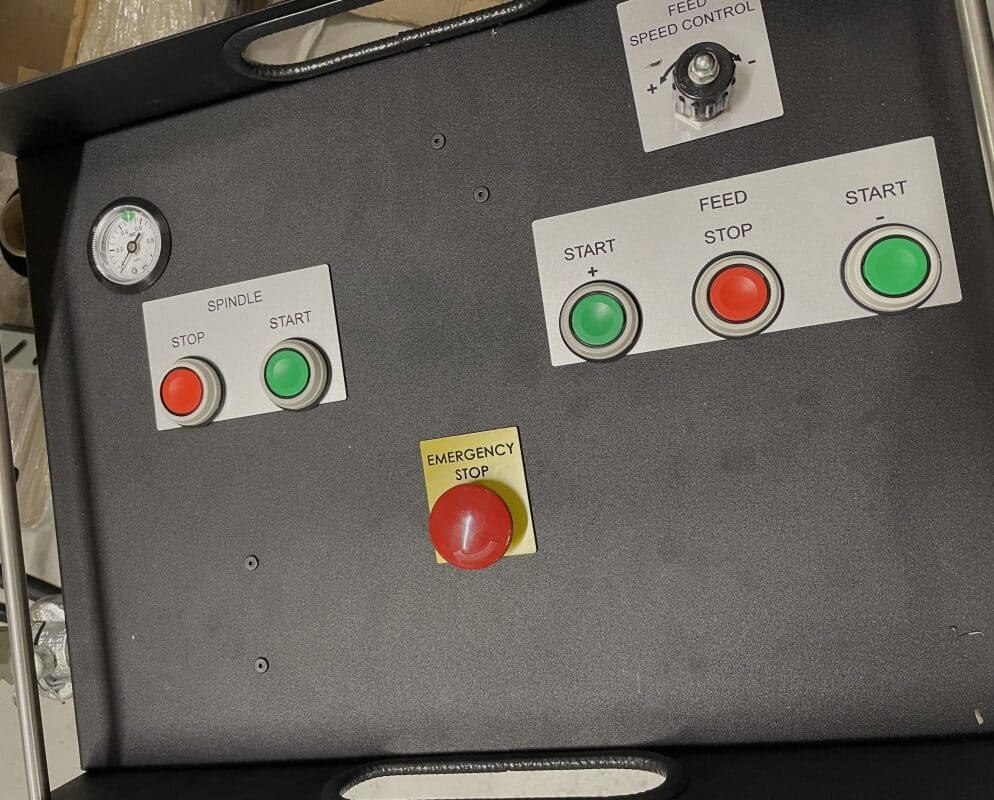

Control Unit for Normaco Portable Milling Machine
Normaco remote control units are designed to provide safe and precise machine operation during on-site machining. They allow the operator to control machine movements from a distance, improving visibility and working position, especially in confined or hazardous environments.
The units are available for both pneumatic (air-driven) and electric machines, ensuring compatibility across different drive configurations and site requirements.
The controls are built for reliability in field conditions, with a straightforward layout that enables accurate feed and axis control. This ensures smooth operation during critical machining tasks.
Compatible with Normaco portable machines, the remote units support efficient setup and operation across a wide range of applications, from maintenance work to demanding industrial machining environments.
Key Features and Benefits
-
Ergonomic and User-Friendly Design: The control unit is designed for maximum comfort, making it easy to manage the milling machine during operation.
-
Advanced Safety Features: Unit includes crucial safety functions like accidental start-up prevention and an easily accessible emergency stop button, ensuring the operator can quickly halt the machine in case of any emergency, minimizing the risk of accidents.
-
Reliable Operation: The control unit is engineered for rugged environments, providing consistent and reliable control of the portable milling machine even in demanding on-site conditions.
Re-assembly in 3-steps in 3 minutes!
first X-axis is mounted on the workpiece
then Y-axis is mounted on the X
lastly spindle assembly (the Z-axis) is fixed on the Y
Drive Options
3-Axis milling machine can be equipped with different spindle motors, depending on the requirement.
Air motors are available in two options, straight standard model, or right angle motor.
Straight drive is supplied as standard, it has 3kW air motor.
Right angle Drive has 2.5kw air motor that can be adjusted to several orientations, making it possible to work in spaces with space restrictions.
We also offer an electric drive, with powerful 1.8kW electric motor that uses 230v connection.
Straight 3kW Air motor
Right Angle Drive 2.5kW
Electric Drive 1.8kW
