Manual Facer

Normaco Manual Facer is a versatile hand powered solution for facing flanges.
It is easily portable weighing only 5kg so it can be easily taken to worksites. Optimal solution for jobs that do not have power source available. With Normaco Manual Facer it is extremely fast to machine small flanges.
Large clamping range makes it possible to machine wide range of flanges with just one machine.
Normaco Manual Facer can make typically needed surface finishes such as phonographic and smooth finish.

Surface finish depends on the selected facing tool and feed screw.

Download Brochure

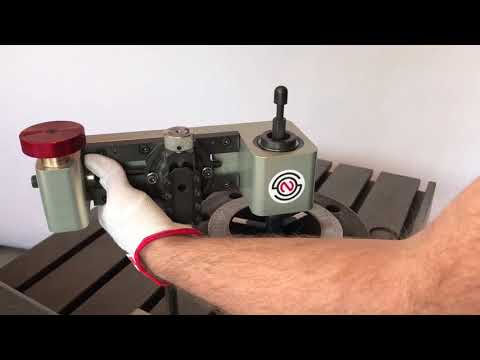

Normaco Manual Facer mounted on a flange

Technical Data

Weight	4.9kg
Clamping Range	Min ID 24.5mm Max ID 162mm (extendable to ID 265mm)
Machinable area	Min D25.5 mm Max D420mm Continuous travel of toolholder: ~80mm
Feed rate	Standard; 0,8 mm/rev Optional; 0,2 mm/rev for other feed rates, contact Normaco sales
Finishes	Standard: Spiral serrated Optional: Smooth finish

Normaco Manual facer dimensional drawing

Kit includes

Manual Facer
Carry case
Hand tools
Clamping leg set for the entire range
Feed set for phonographic
Set of Cutting tools
Indicator

Optional; Feed set for smooth machining

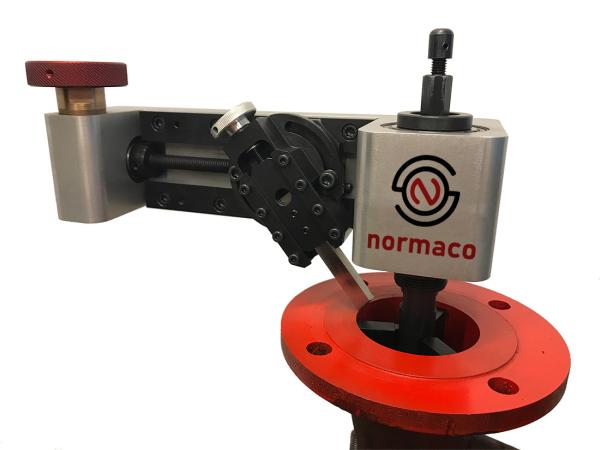

Normaco Manual Facer mounted on a red flange

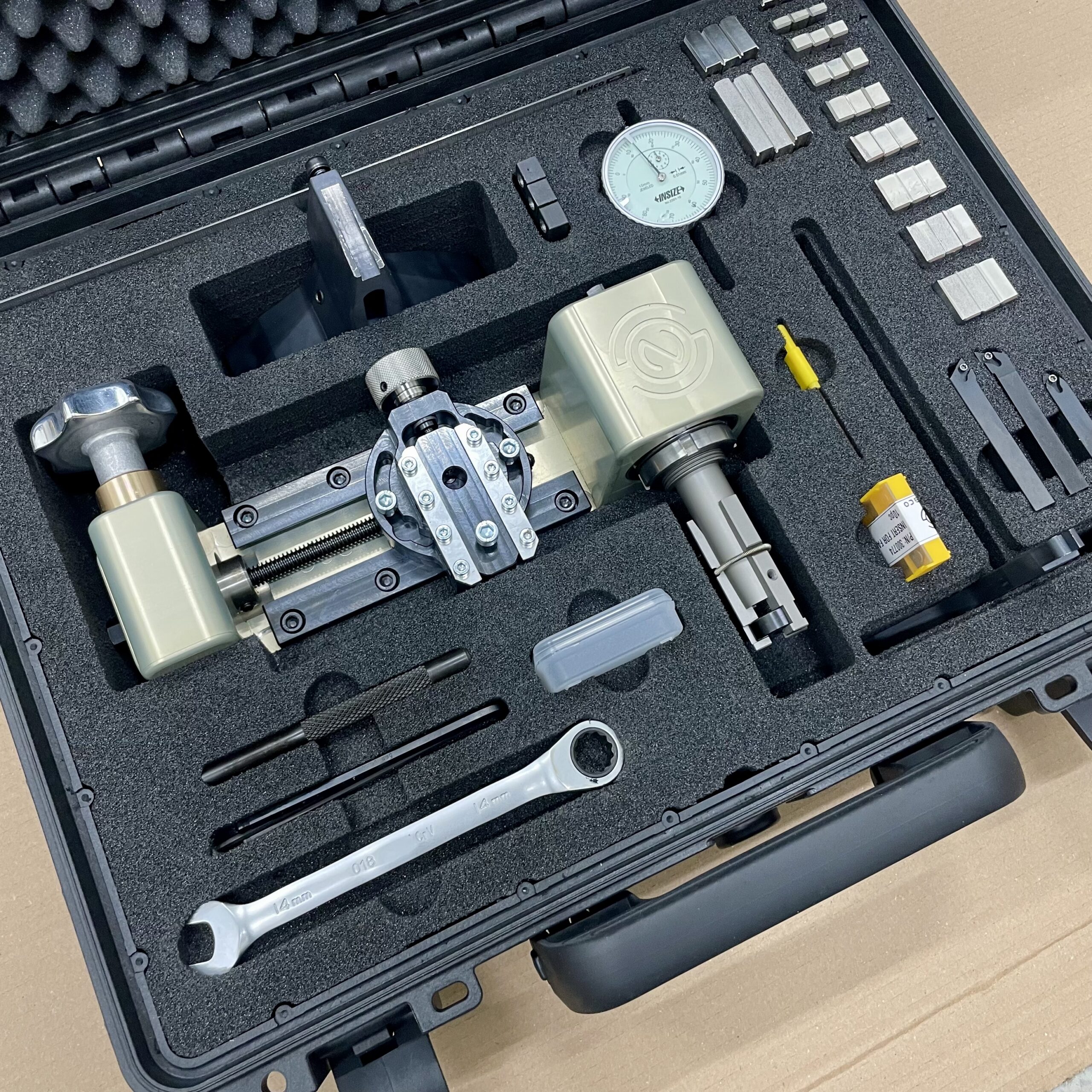

Contents of the Manual Facer kit by Normaco

Closeup of the surface machined with the Manual Facer

Normaco Manual Facer mounted on a flange with indicator
