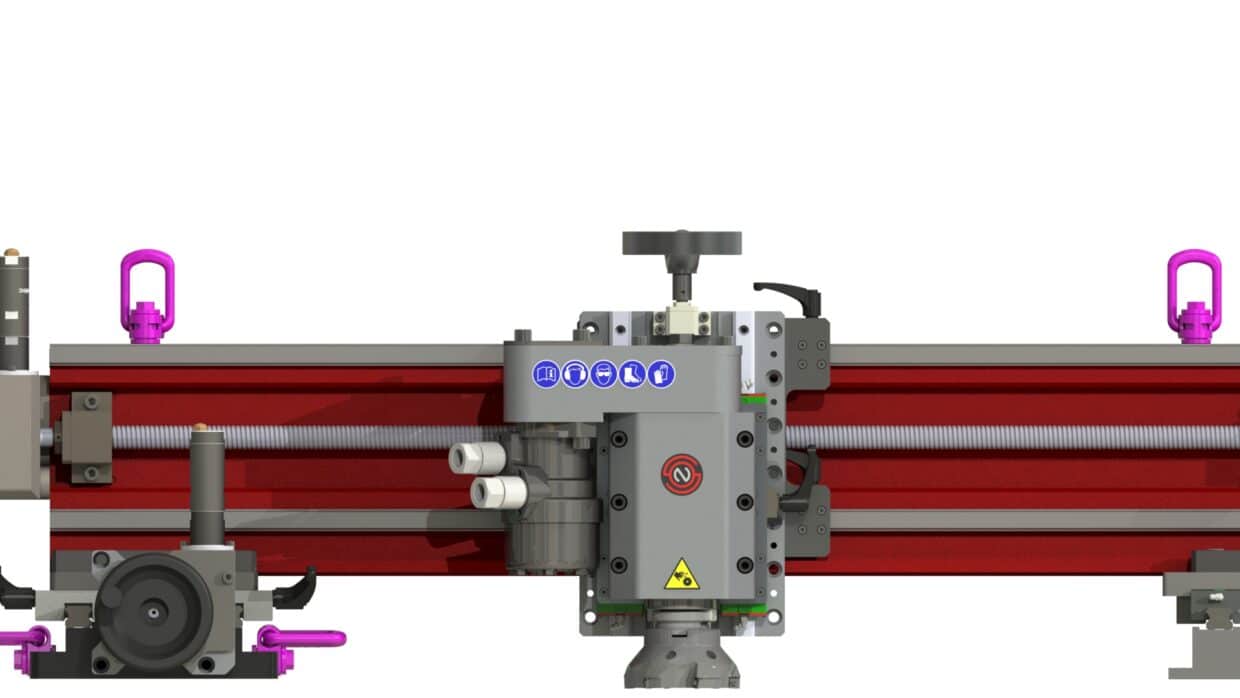

February 28, 20233-Axis/Gantry Portable Milling Machine PMH3
Normaco PMH3 Milling Machine is the latest addition to our range of portable milling machines.
This milling machine is suitable for heavy duty on-site milling work and can be used in refineries, shipyards, fabrication, etc.
It can be used in standard 3-axis configuration or extended to gantry configuration.
The Portable Milling Machine is mounted directly to the work piece by bolting, welding or using a magnet base. Pneumatic motor and low milling cutter speed make it possible to use the portable milling machine in areas where cold work is a requirement.
The Portable Milling Machine is powered by high quality air motors. X-axis is driven by an air motor or manually with a handwheel. The spindle has powerful 3kw air motor.
Key Benefits
- Rigid construction
- Portable - can be quickly dismantled and setup.
- Flexible at site in various configurations
- Pneumatic drive system
- Accepts standard tooling - ISO40 cone
- X-Axis auto-feeding
- Cold work - no sparking
Technical Data
| Travel |
Available lengths X-travel: 1000 mm2000 mm |
| Y-travel: 300 mm | |
| Z-travel: 80mm | |
| Feed | X-axis: pneumatic & manual |
| Y-axis: manual | |
| Z-axis: manual | |
| Spindle | Spindle speed: 100-850rpm |
| Motor: Pneumatic 3kW | |
| Depth measurement system | |
| Spindle ISO40 | |
| **** | |
| Mounting | Welded or bolted base |
| Optional; Magnet base clamping |
|
| Machine delivery includes | |
| Transport crate | |
| Set of hand tools for operating the machine | |
| CE certification and manual | |
| Weights | Operational weight: 380 kg |
| Shipping weight: 450 kg |
