Tool Setting Device for Line Boring Machines

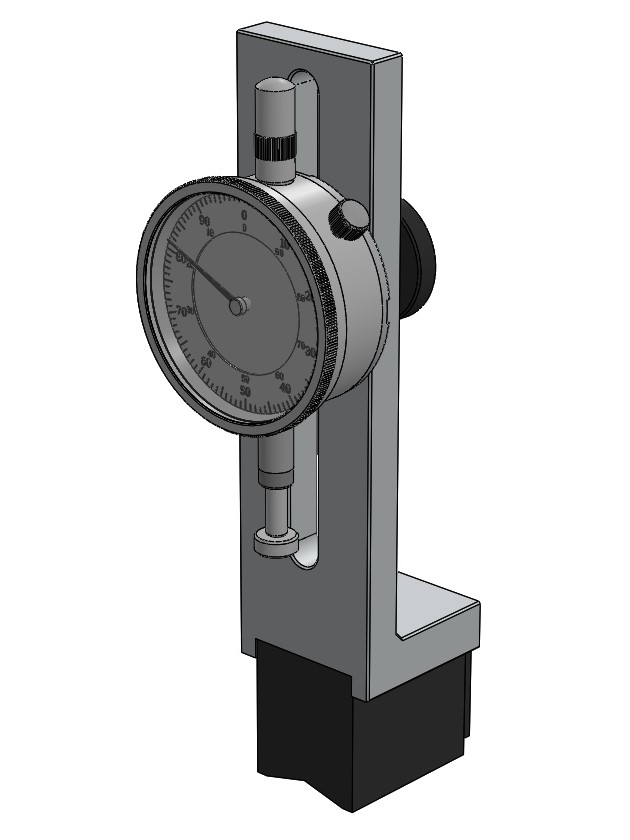

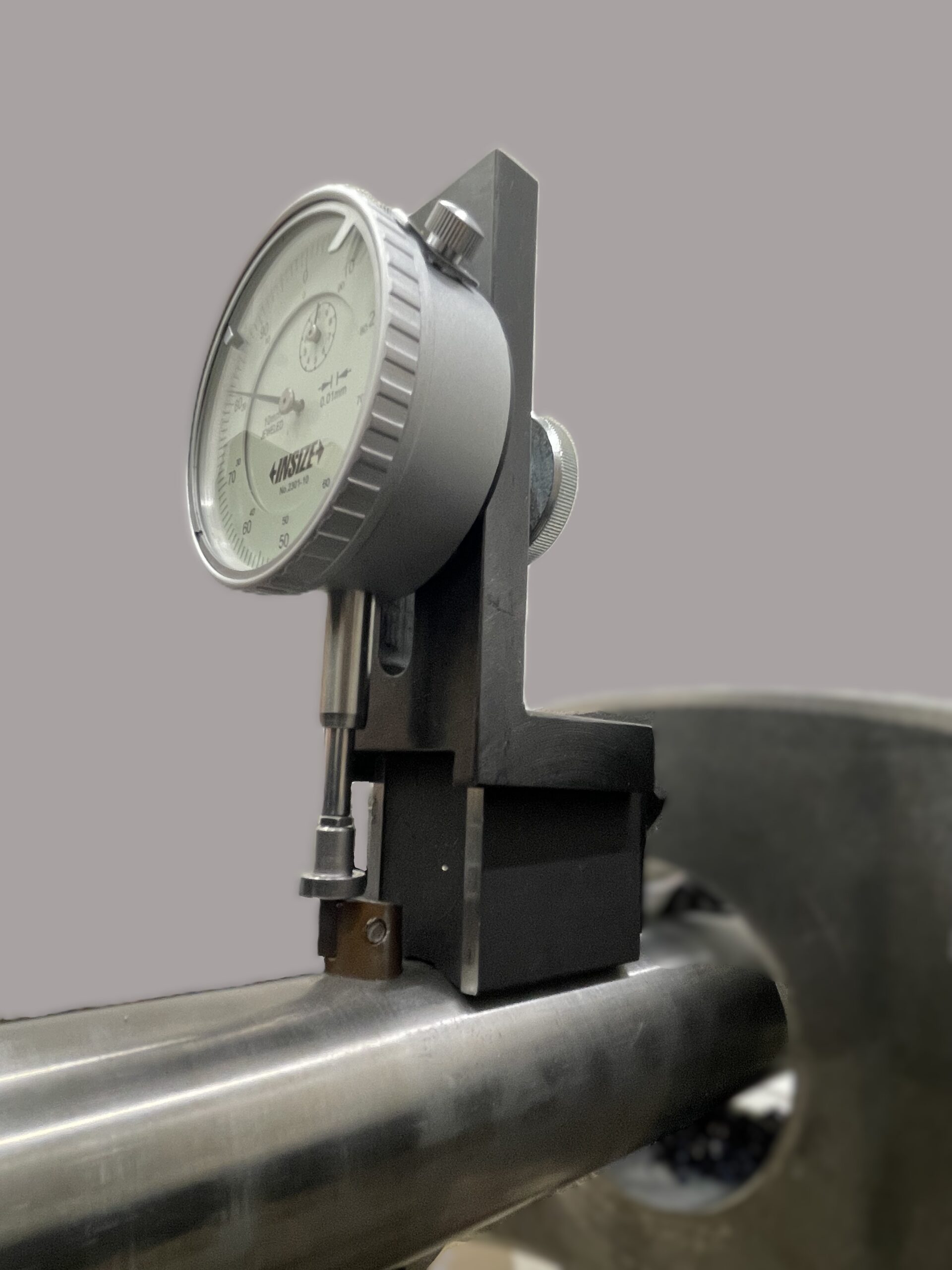

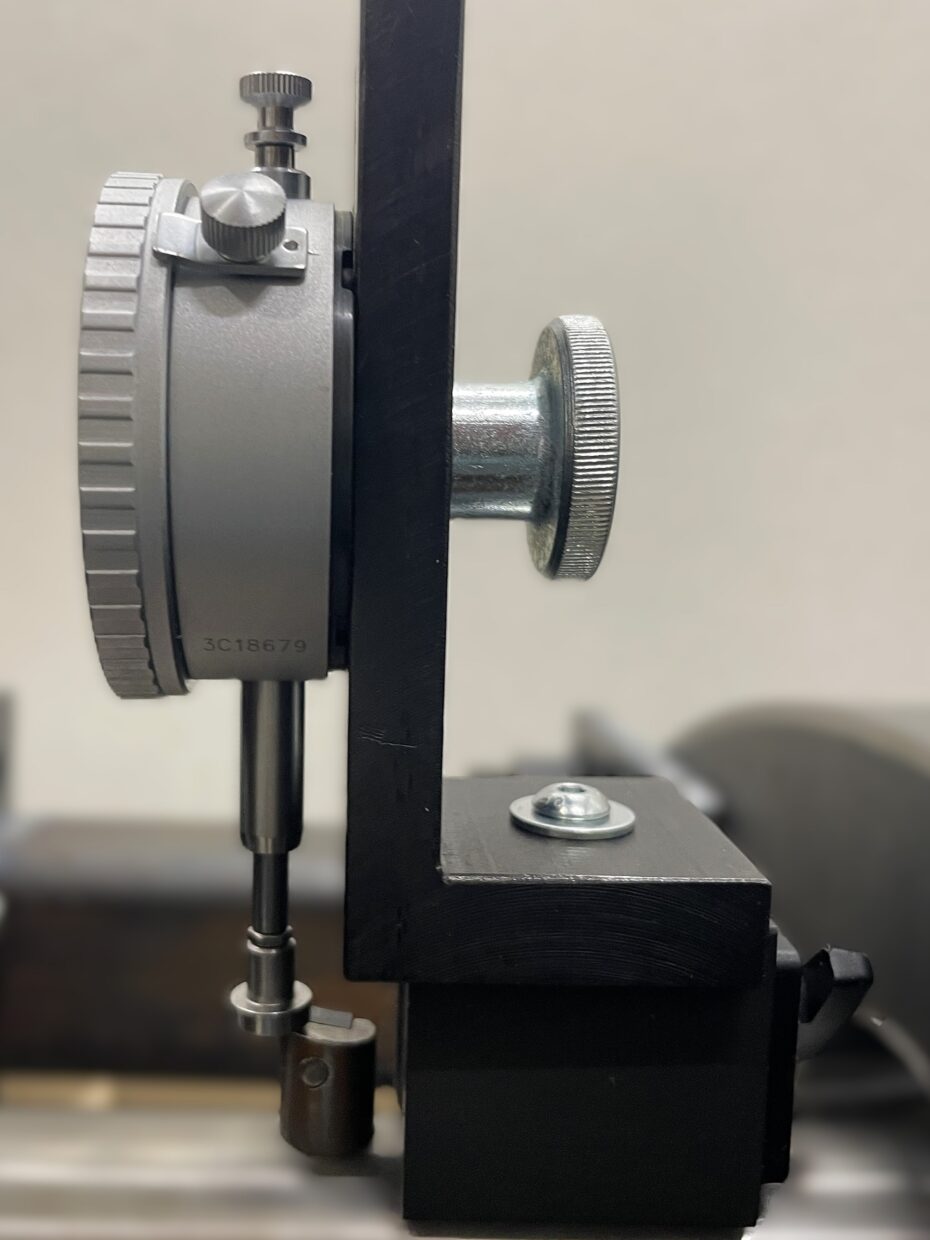

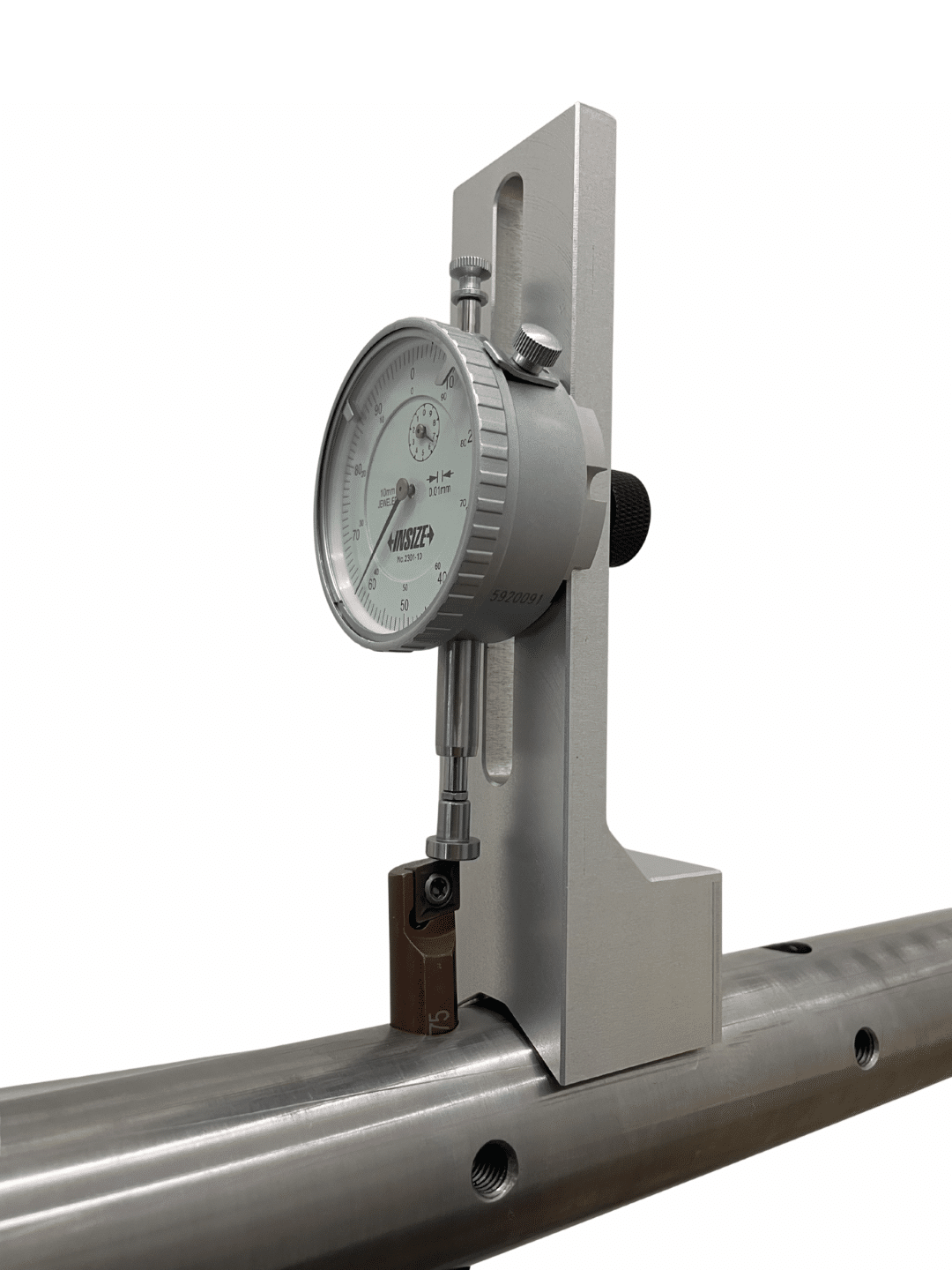

This device is used to help set the cutting tool accurately on a line boring machine. It has a magnetic base that attaches to the boring bar, and a dial indicator mounted on a bracket. The wide tip of the indicator touches the tool or tool holder.
As the tool is adjusted using the tool adjustment screw, the dial indicator shows how much the tool has moved. This makes it easier to set the tool to the correct diameter, especially when working to tight tolerances.
The device is lightweight, compact, and easy to use. It doesn’t require any special setup or extra parts. It’s a simple way to make tool adjustments more precise and consistent, whether in the workshop or out in the field.

Technical Data
Max measuring Ø | 240 mm + bar diameter |
Min measuring Ø | Equal to bar diameter |
Continuous measurement | 10 mm |
Shipping weight | 1 kg |
Part number | 302015 |
